Across many industries, stainless steel sanitary pipe fittings are important for keeping process systems clean. Components such as ferrules, clamps, sanitary valves, and fittings are made to maintain clean fluid paths. They limit contamination risk while making cleaning, inspection, and maintenance easier.
Sanitary Hose Fittings
Selecting the right Hygienic Fittings and Ss Sanitary Fittings affects product safety, uptime, and regulatory compliance. Material grade, surface finish, and connection compatibility are major selection factors. They influence the ease with which a system can be validated and maintained.
Operations teams benefit from reliable suppliers and detailed catalogs when choosing the correct parts. Brands like CSI and distributors such as Installation Parts Supply offer essential information. They provide catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Key Takeaways
- Stainless Steel Sanitary Pipe Fittings are essential for contamination control in clean systems.
- Cleanability and corrosion resistance are shaped by material grade and surface finish.
- Compatible Hygienic Fittings minimize downtime during upgrades, changeovers, and maintenance.
- Catalogs and reviews from CSI and Installation Parts Supply assist dependable sourcing.
- Proper selection of Sanitary Valves And Fittings helps maintain regulatory compliance and product quality.
Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems: Overview
Clean-process systems depend on components made for hygiene, safety, and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features help prevent contamination and support clean-in-place and sterilize-in-place procedures.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are designed to create crevice-free connections. This reduces bacterial growth, maintaining product purity during transfer and processing. Their design supports quick cleaning and minimizes cross-contamination risks.
Where Hygienic Fittings Are Used
Food processors use hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical facilities choose fittings that meet high-level regulatory and validation requirements.
Biotech facilities need precise sanitary connections for cell culture and fermentation. These industries focus on traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Works Best For Hygienic Systems
Stainless steel is commonly selected for its corrosion resistance, mechanical strength, and cleanability. Grades such as 304 and 316L can withstand cleaning chemicals, process fluids, and elevated temperatures. They also accept surface finishes such as electropolishing and low Ra values.
Stainless components limit bacterial growth and extend service life under aggressive cleaning. Tri Clover Sanitary Fittings and other standardized interfaces simplify assembly, inspection, and maintenance in hygienic systems.

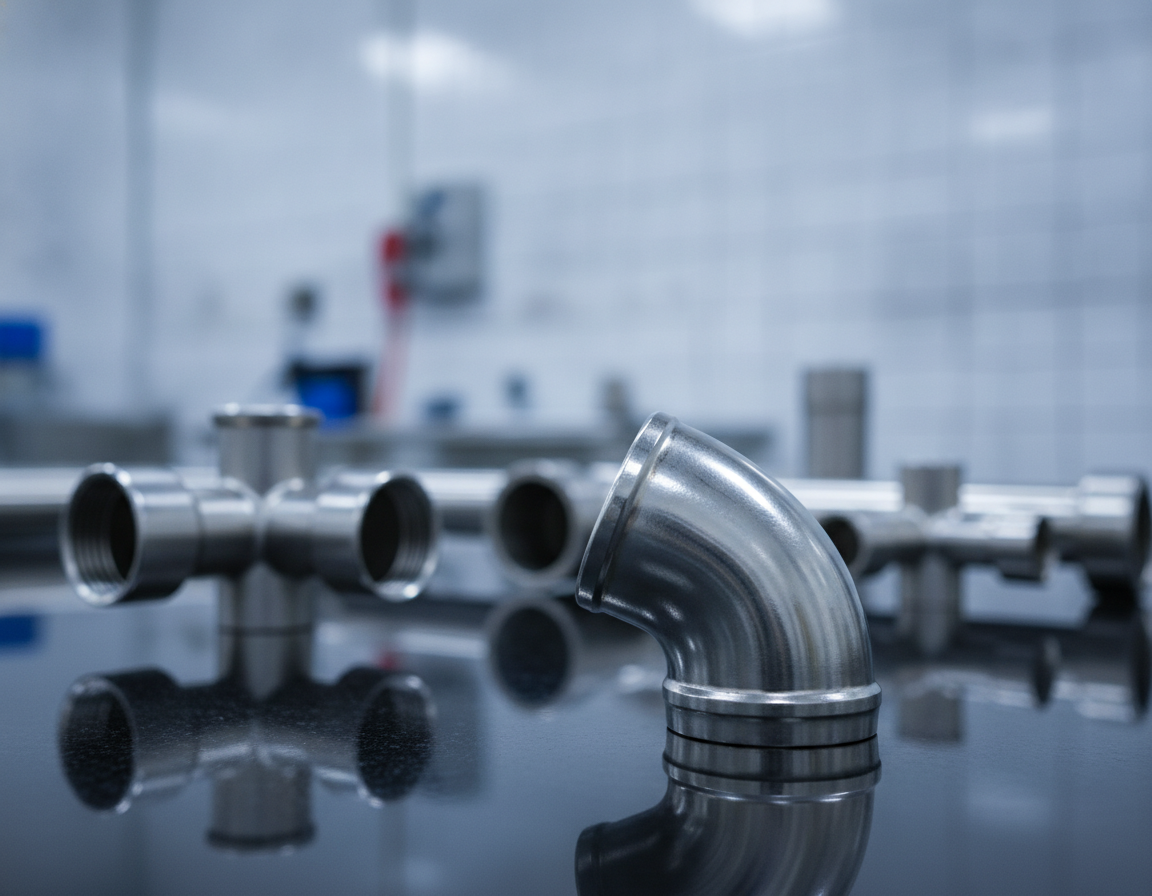

Stainless Steel Sanitary Pipe Fittings Explained
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are critical. Choosing the right material, component type, and surface finish helps reduce contamination risk and makes cleaning easier. This section explains common stainless grades, component families, and surface finish options for hygienic performance.
Sanitary Stainless Steel Materials And Grades
Type 304 stainless steel offers corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L provides superior resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L at the design stage streamlines the procurement of SS Sanitary Fittings and associated parts.
Sanitary Fitting Product Types And Functions
Ferrules serve as the basic connection points for butt-weld and weld-in assemblies. They are typically available in 304 or 316L with polished internal diameters to match process piping requirements.
Two-piece clamps, known as Tri-Clamp or Tri-Clover style, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings help create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings limits downtime and leak risks.
Why Surface Finish Matters For Cleanability
Surface roughness affects how residues adhere. A 32RA internal finish is a common specification that balances cost, cleanability, and food/beverage performance.
Electropolishing further smooths the stainless surface and improves passivity. This treatment helps reduce microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is easier.
| Sanitary Component | Usual Material | Standard Finish | Main Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 / 316L stainless | 32RA ID and OD finish | Sanitary welded pipe ends |
| Tri-Clamp two-piece clamps | 316L commonly preferred | 32RA or electropolished | Fast sanitary assembly and disassembly |
| Weld fittings and couplings | 304 and 316L stainless options | 32RA with optional electropolish | Welded joins and directional changes |
| Hygienic hose fittings | 316L common | Electropolished where product contact occurs | Hose-to-pipe transfer connections |
| Hygienic valves and fittings | 316L for wetted parts | Polished internal surfaces | Hygienic flow control |
Tri Clover Fittings And Tri-Clamp Fittings Catalog Options
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. This supports sanitary lines remain leak-free and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, review size ranges, material specifications, and surface finishes. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs include clamps, ferrules, and gasket sets, sized in inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting entry should show OAL, ID/OD finish, and compatible gasket material. This helps ensure the correct part is selected when ordering.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps use a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material influences both longevity and cleaning performance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Ensure the Tri-Clamp Fittings Catalog lists both ferrule metallurgy and clamp construction. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should provide clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog enables quick replacement of Triclover Fittings, minimizing downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
CSI Sanitary Fittings Compatibility And Sanitary Connections
Sanitary connections are important for linking pipes, valves, and equipment in clean systems. The correct joint type is important for maintaining cleanability, efficiency, and reliability. This section will explain common connection styles, brand interchangeability, and customer feedback on supplier reliability.
Common connection types include Tri-Clamp connections, butt-weld fittings, socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different advantages for assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints, on the other hand, deliver the smoothest internal profile for cleaning-in-place CIP and sanitizing-in-place SIP processes. Threaded fittings are suitable for low-risk applications where product contact is not a concern. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility is critical when mixing components. CSI Sanitary Fittings and Csi Fittings follow common standards such as Tri-Clamp and DIN, which generally supports interchangeability with other manufacturers. Steel & O’Brien publishes spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To verify compatibility, match the nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can create corrosion or trap product residues.
Customer feedback provides practical insights into supplier reliability. Reviews for CSI show consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets reduce downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Connection Type | Best Use | Cleaning Performance | Interchangeability Notes |
|---|---|---|---|
| Tri-Clamp clamp connection | Product-contact lines needing frequent disassembly | Easy cleaning when gasket and ferrules match | High when size and sealing face match; CSI fittings fit most brands |
| Butt-Weld / Socket-Weld | Fixed sanitary piping where cleanability is critical | Excellent after correct weld finishing and polishing | Standard dimensions support cross-brand ferrule and coupling compatibility |
| Threaded | Utility lines and non-product-contact service | Lower cleanability where threads contact process fluids | Less common in product-contact lines; verify material and surface finish |
| Sanitary hose and ferrule connection | Flexible transfer lines and temporary connections | Good when ferrule, gasket, and clamp match | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
Selection Guide For Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Selecting the correct sanitary components starts with a focused review of size, material, finish, and pressure. This guide supports you match size, material, and finish to your process needs. Use the metrics and checks below to limit downtime and ensure hygienic performance.
Begin with size and designation. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog mappings include DN20, DN25, DN32, DN40, DN50, DN65, and DN100 matched to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is important. For routine food and beverage lines, 304 satisfies strength and cleanability needs. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Assess pressure and clamp type. Standard sanitary clamps handle many everyday sanitary services. High-pressure applications call for reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review catalog pressure ratings and choose clamps rated above operating pressure to provide a safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final verification steps can save money and prevent ordering mistakes. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Sanitary Coupling And Sanitary Weld Fittings Installation, Maintenance, And Best Practices
Ensuring the cleanliness and reliability of sanitary connections is critical. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Proper assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Sanitary Weld Fittings best practices
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Routine Sanitary Maintenance
Implement CIP and SIP cycles as required by the process. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. After each maintenance activity, verify clamp torque, gasket seating, and alignment.
Common issue troubleshooting
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can cause uneven compression and leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Surface damage repair considerations
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches can be polished out and then electropolished to restore the Ra levels. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and records
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records support regulatory compliance and expedite troubleshooting efforts.
| Task | Interval | Primary Action | Service Notes |
|---|---|---|---|
| Clamp torque check | After assembly, then monthly | Check with calibrated torque wrench | Use manufacturer torque table for Sanitary Coupling sizes |
| Gasket inspection/replacement | Every 3–12 months or on failure | Inspect for cuts, hardening, extrusion | Use matching material, profile, and durometer |
| Surface finish check | Every quarter or after welding | Measure roughness and inspect visually | Electropolish if Ra exceeds spec for hygienic areas |
| Weld inspection | After installation and annually | Inspect for undercut, porosity, profile | Rework and polish fittings when defects appear |
| Cleaning and sterilization validation | According to each cleaning or sterilization cycle | Record process parameters during each cycle | Keep records for traceability and audits |
Where To Buy Sanitary Fittings: Catalogs, CSI Fittings, And Installation Parts Supply
Starting with a detailed catalogue review is essential. Look for a Sanitary Fittings Catalog that includes material grade, finish, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, dimensional specifications, and material grade. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog helps make matching gaskets and clamps easier during assembly.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to compare market pricing and common stocking sizes. Prices reflect typical catalog entries and help set realistic budgets for procurement.
| Item | Nominal Size | Material | Listed Finish | Typical Catalog Price |
|---|---|---|---|---|
| Two-piece single-pin sanitary clamp | 0.25″ to 0.75″ | 304 stainless | Standard catalog finish | $3.91 |
| Single-pin two-piece clamp | 1 inch | Type 304 stainless steel | Standard catalog finish | Approx. $4.91 |
| Single-pin two-piece clamp | 2 inch | 304 stainless | Standard | $5.99 |
| Two-piece single-pin clamp | Two-and-a-half-inch size | 304 stainless | Standard catalog finish | $6.93 |
| Two-piece single-pin clamp | 3″ | Type 304 stainless steel | Standard catalog finish | $7.54 |
| Two-piece single-pin sanitary clamp | 4 inch | 304 stainless | Standard | $9.16 |
| Tri-Clamp ferrule | 2″ size, 1.125″ overall length | 316L | 32RA internal and external finish | 4.24 USD |
| Tri-Clamp ferrule | 2 inch with 1.125 inch OAL | 304 | 32RA internal and external finish | Approx. $4.06 |
| Tri-Clamp ferrule | 3 inch | 316L stainless | 32RA internal and external finish | Approx. $6.15 |
| Double-bolt high-pressure clamp | 1.5″ | 316 stainless | Polished | $12.93 |
| High-pressure double-bolt clamp | Two-inch size | 316 stainless | Polished sanitary finish | $14.62 |
| High-pressure double-bolt clamp | 3 inch | Type 316 stainless steel | Polished | $20.26 |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to confirm availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted search through a Sanitary Fittings Catalog will speed up procurement and reduce returns on critical process components.
Sanitary Pipe Fittings Summary
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in food, beverage, pharmaceutical, biotech, and other hygienic industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, improves cleanability. These choices can significantly reduce contamination risk. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When selecting fittings, evaluate the material, finish, and connection type. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. Use high-pressure clamps where process pressure or safety margins require them. Keeping gaskets, clamps, and ferrules consistent helps prevent leaks and simplifies maintenance. Proper installation and regular cleaning extend fitting life and support compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This supports balanced cost and reliability in procurement decisions. When searching for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines improves system design and upkeep. Clear specifications, consistent materials, and reliable sources help minimize downtime. This preserves product quality in hygienic processing environments.
